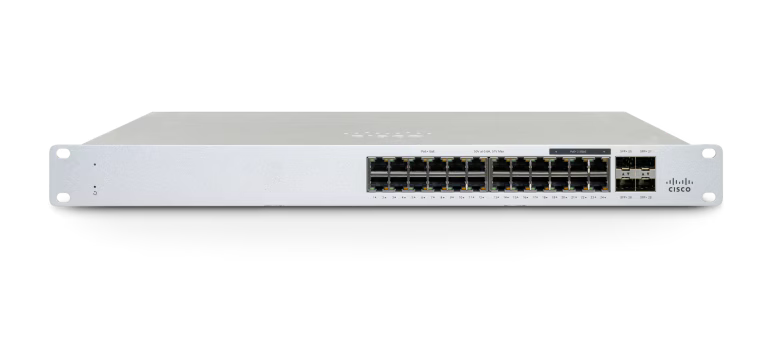

Cisco Meraki MS130-24P Cloud-Managed 24-Port GE 370W PoE+ Switch

The Cisco Meraki MS130-24P (MS130-24P-HW) is a cloud-managed Layer 2 access switch designed for branch and campus deployments. Featuring 24 x 10/100/1000 Mbps RJ45 PoE+ ports and 4 x 1G SFP uplinks, it delivers a 56 Gbps non-blocking switching capacity — ideal for powering and connecting wireless access points, VoIP phones, IP cameras, and IoT devices. The switch is fully managed through the intuitive Cisco Meraki Dashboard, enabling zero-touch provisioning, network-wide visibility, and remote troubleshooting from anywhere without the need for on-site intervention.

With a generous 370W PoE budget and 802.3bt PoE+ support delivering up to 30W per port with dynamic power allocation, the MS130-24P eliminates the need for additional power injectors or dedicated cabling. The compact 1U rack-mountable chassis (integrated rack ears included) features a fixed internal power supply, making it an efficient and tidy solution for wiring closets and server rooms. The switch operates fanlessly under normal conditions, ensuring quiet operation in office environments.

The MS130-24P supports a comprehensive set of Layer 2 features and security capabilities, including:

• 24 x 1GbE RJ45 PoE+ ports (802.3bt, up to 30W per port) + 4 x 1GbE SFP uplinks
• 56 Gbps non-blocking switching capacity
• 370W total PoE budget with dynamic power allocation
• Cloud management via Cisco Meraki Dashboard with zero-touch provisioning
• 802.1Q VLAN tagging, DHCP relay and DHCP snooping
• 802.1X port-based authentication and IPv4/IPv6 ACL support
• SNMP/Syslog integration and remote packet capture tools
• Automatic firmware upgrades with schedulable rollouts
• Voice and video QoS prioritisation
• 1U rack-mountable, integrated ears, fixed internal PSU
• Dimensions: 1.73 × 17.32 × 10 in (4.4 × 44 × 25 cm) | Weight: 8.91 lb (4.04 kg)
• Power input: 100–240V~, 50–60Hz | Power load (idle/max): 32W / 406W
• Operating temperature: 0°C to 45°C (32°F to 113°F)

As part of the Cisco Meraki MS130 series, the MS130-24P integrates seamlessly with other Meraki products — including access points, security appliances, and cameras — providing unified policy control and visibility across your entire network from a single dashboard. A Cisco Meraki license is required to activate and operate this switch (sold separately).
