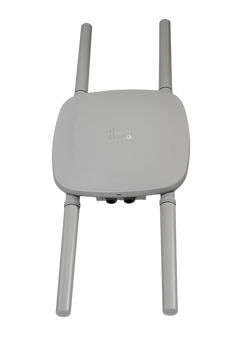

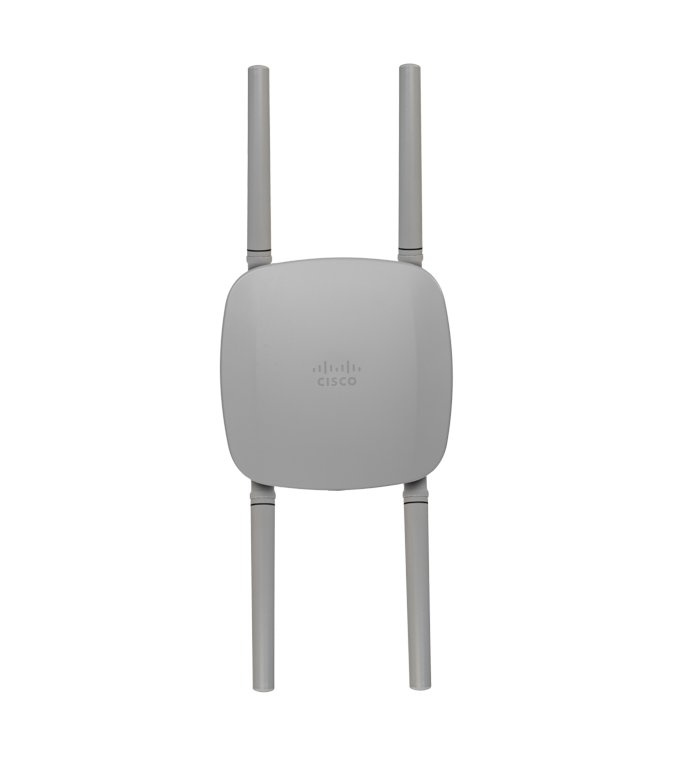

Cisco Meraki CW9163E Wi-Fi 6E Cloud-Managed Outdoor Access Point

Cisco Meraki CW9163E Wi-Fi 6E Cloud-Managed Outdoor Access Point

$1,538.99reseller pricing · ex. tax
Free US shipping on orders $999+ · flat $9.90–$24.90 ground below
Meraki dashboard license— required to operate
$1,538.99 hardware · no license selected Total$1,538.99

The Cisco Meraki CW9163E (Catalyst Wireless, Meraki-managed) brings Wi-Fi 6E — including the clean 6 GHz band — outdoors. IP67-rated with an extended temperature range and an integrated GNSS receiver for 6 GHz AFC compliance, it's built for campuses, venues, and outdoor high-capacity coverage, managed entirely from the Meraki dashboard.

  • Wi-Fi 6E tri-band — 2x2 radios on 2.4, 5, and 6 GHz; up to 3.9 Gbps aggregate frame rate
  • 1 × 100M/1G/2.5G multigigabit Ethernet (RJ45) — link speeds up to 2.5 Gbps on PoE+
  • Dedicated tri-band scanning radio plus a 2.4 GHz IoT/BLE radio
  • Integrated GNSS receiver for 6 GHz AFC (standard-power outdoor 6 GHz operation)
  • IP67-rated; operates from −40°F to 149°F (−40°C to 65°C) without solar derating
  • PoE+ / UPoE powered (25 W max on PoE+); WPA3 security
  • External antennas sold separately — omni (CW-ANT-O1-NS-00) or directional (CW-ANT-D1-NS-00); optional GPS antenna (CW-ANT-GPS2-S-00)
  • Wall and pole mounting brackets included

A Meraki Enterprise or Advanced license is required to activate cloud management — choose your term below and we'll co-terminate it to your organization. Antennas are model-specific — ask us and we'll spec the right ones for your deployment. Authorized Cisco Meraki reseller.

  • Limited lifetime warranty — Meraki's hardware warranty covers the device for its operational life.
  • Cloud-managed — configured, monitored and updated from the Meraki dashboard.
  • 24×7 support — Cisco TAC support included while your dashboard license is active.

Key specifications

Wireless
Radios 2.4 / 5 / 6 GHz 2x2 client radios + dedicated tri-band scanning radio + 2.4 GHz IoT/BLE radio
Antennas External, sold separately — CW-ANT-O1-NS-00 (omni) / CW-ANT-D1-NS-00 (directional); optional CW-ANT-GPS2-S-00 GPS
6 GHz AFC Integrated GNSS receiver for AFC compliance
Wi-Fi standard Wi-Fi 6E (802.11ax tri-band, 6 GHz certified)
Aggregate frame rate 3.9 Gbps tri-radio
Interfaces & Power
Power PoE+ / UPoE (42.5–57 V)
Ethernet 1 × 100M/1G/2.5G multigigabit (RJ45)
Power consumption 25 W max (PoE+)
Licensing & Warranty
License required Meraki Enterprise or Advanced, 1/3/5/7/10-year (sold separately — select below)
Hardware warranty 1 year with advanced replacement
Management & Security
Security WPA3, dedicated scanning radio
Analytics Cloud RF optimization, application visibility
Cloud management Cisco Meraki dashboard
Physical & Environmental
Weight 3.3 lb (1.5 kg)
Mounting Wall and pole — brackets included
Dimensions 9.64 × 9.64 × 2.5 in (245 × 245 × 63.5 mm), excl. brackets
Environmental rating IP67
Operating temperature −40°F to 149°F (−40°C to 65°C), no solar derating
Shipping
Shipping weight 6.5 lb
Shipping dimensions (L × W × H) 11.25 × 10.75 × 4.75 in

Full datasheet available on request. Specifications per Cisco; Zconnect is an authorized reseller and independent of Cisco Systems.

Required to operate

Meraki hardware needs a dashboard license

Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.

View Licensing Options

Not sure this is the right model?

Send us your site and coverage needs. We'll confirm the model, size the count, and quote it with the right license — free, no obligation.

Book Free Advisory
Authorized Cisco Meraki Partner · Reseller pricing · SF Bay Area
