1 / 4
Cisco Meraki

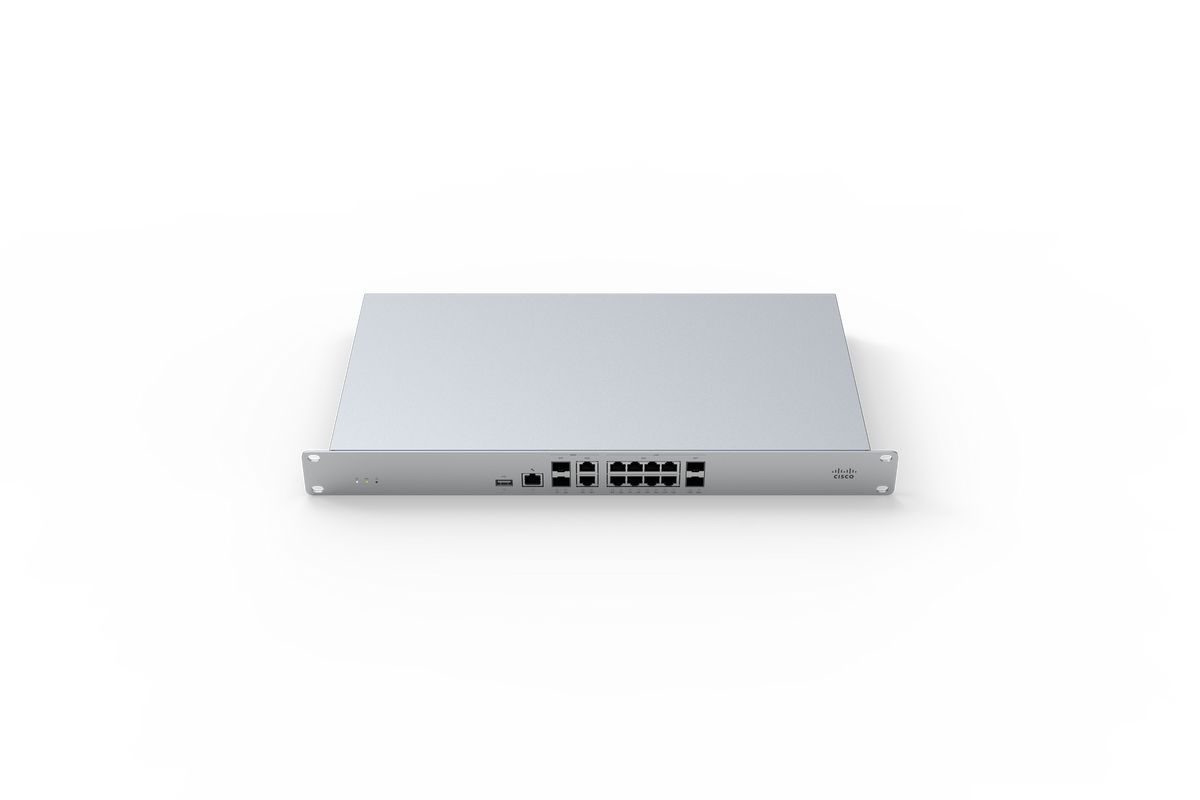

Cisco Meraki MX85 Cloud-Managed Security & SD-WAN Appliance

MPN: MX85-HW
$2,957.99reseller pricing · ex. tax
Meraki dashboard license — required to operate
$2,957.99 hardware · no license selected Total$2,957.99

Description

The Cisco Meraki MX85 is a cloud-managed security & SD-WAN appliance — small to medium branch — up to 250 users. It delivers a stateful firewall, site-to-site Auto VPN, and unified threat management, all configured and monitored from the Meraki dashboard with no on-site controller.

  • 1 Gbps stateful firewall throughput, up to 1 Gbps site-to-site VPN.
  • Interfaces: 2 x 1 GbE SFP + 2 x 1 GbE (RJ45) (WAN) + 8 x 1 GbE (RJ45) + 2 x 1 GbE SFP (LAN); 1 x WAN port with PoE+ (802.3at, to power an external MG gateway).
  • Integrated Auto VPN & SD-WAN with dynamic path selection; advanced threat protection (IDS/IPS, Cisco AMP, content filtering) unlocks with the Advanced Security or Secure SD-WAN Plus license.

A per-appliance Meraki license is required (Enterprise, Advanced Security, or Secure SD-WAN Plus) and is sold separately — choose your tier and term below. This is a special-order item sourced from an authorized distributor per order. Need help sizing or a volume quote? Request a quote and we'll confirm the right bundle for your deployment.

Key specifications

Physical
Mounting 1U rack-mountable
Wireless None (wired appliance)
Performance
Recommended for Small to medium branch — up to 250 users
Site-to-site VPN throughput 1 Gbps
Advanced security throughput 1 Gbps
Stateful firewall throughput 1 Gbps
Security & SD-WAN
SD-WAN Auto VPN, dynamic path selection, SmartProbe
Firewall Stateful L3/L7 (application-aware)
Threat protection IDS/IPS, Cisco AMP, content filtering, geo-IP (with the Advanced Security / Secure SD-WAN Plus license)
Ports & Interfaces
PoE 1 x WAN port with PoE+ (802.3at, to power an external MG gateway)
Cellular None built-in (pair with an external Meraki MG cellular gateway)
LAN ports 8 x 1 GbE (RJ45) + 2 x 1 GbE SFP
WAN ports 2 x 1 GbE SFP + 2 x 1 GbE (RJ45)
Licensing & Warranty
Cloud management Cisco Meraki dashboard
License required Enterprise, Advanced Security, or Secure SD-WAN Plus — 1/3/5/7/10-year (sold separately — select below)
Hardware warranty Lifetime hardware warranty (next-day advance replacement)
Shipping
Shipping weight 13.4 lb
Shipping dimensions (L × W × H) 21.8 × 13.5 × 4.1 in

Full datasheet available on request. Specifications per Cisco; Zconnect is independent of Cisco Systems.

Meraki hardware needs a dashboard license

Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
