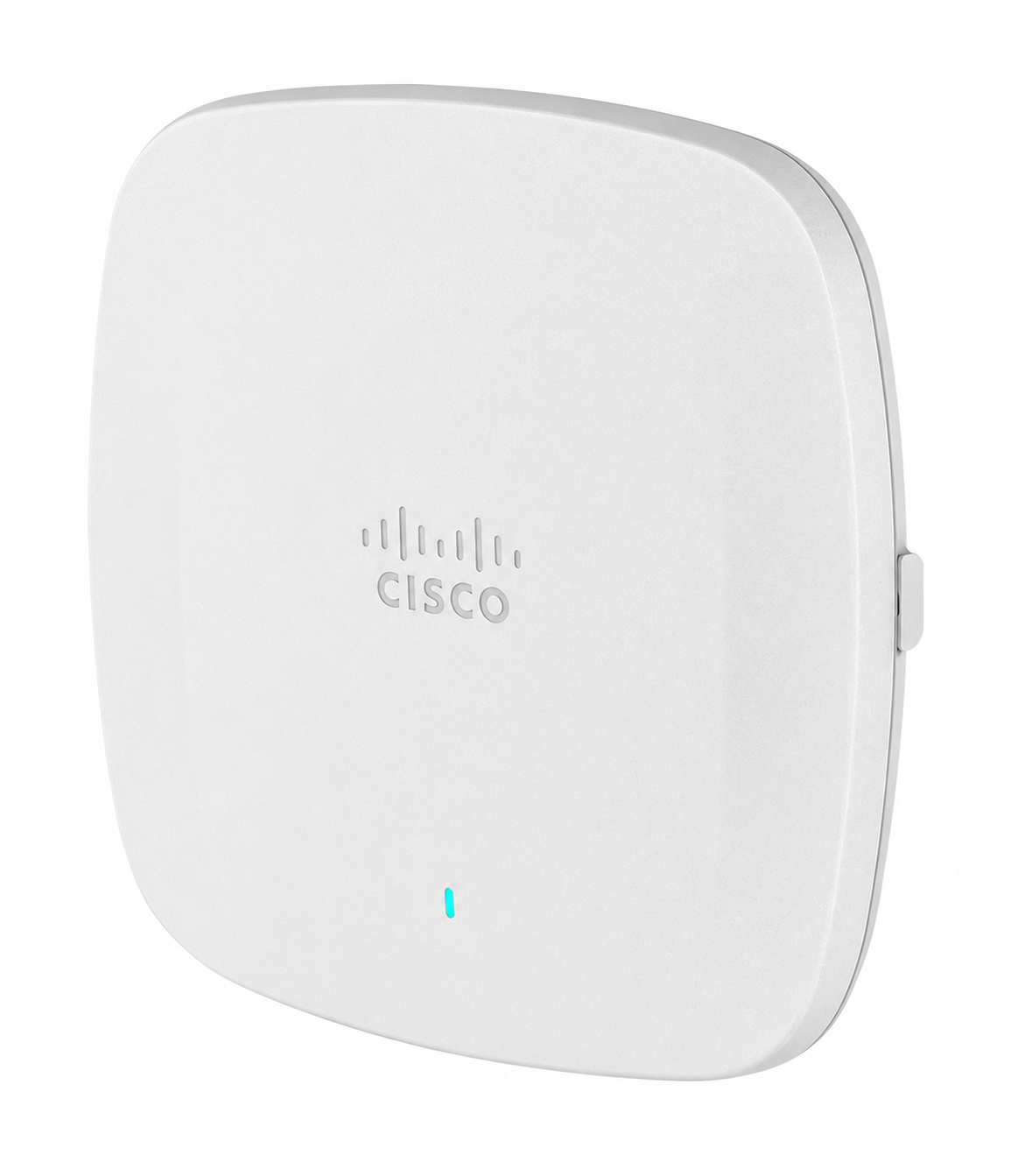

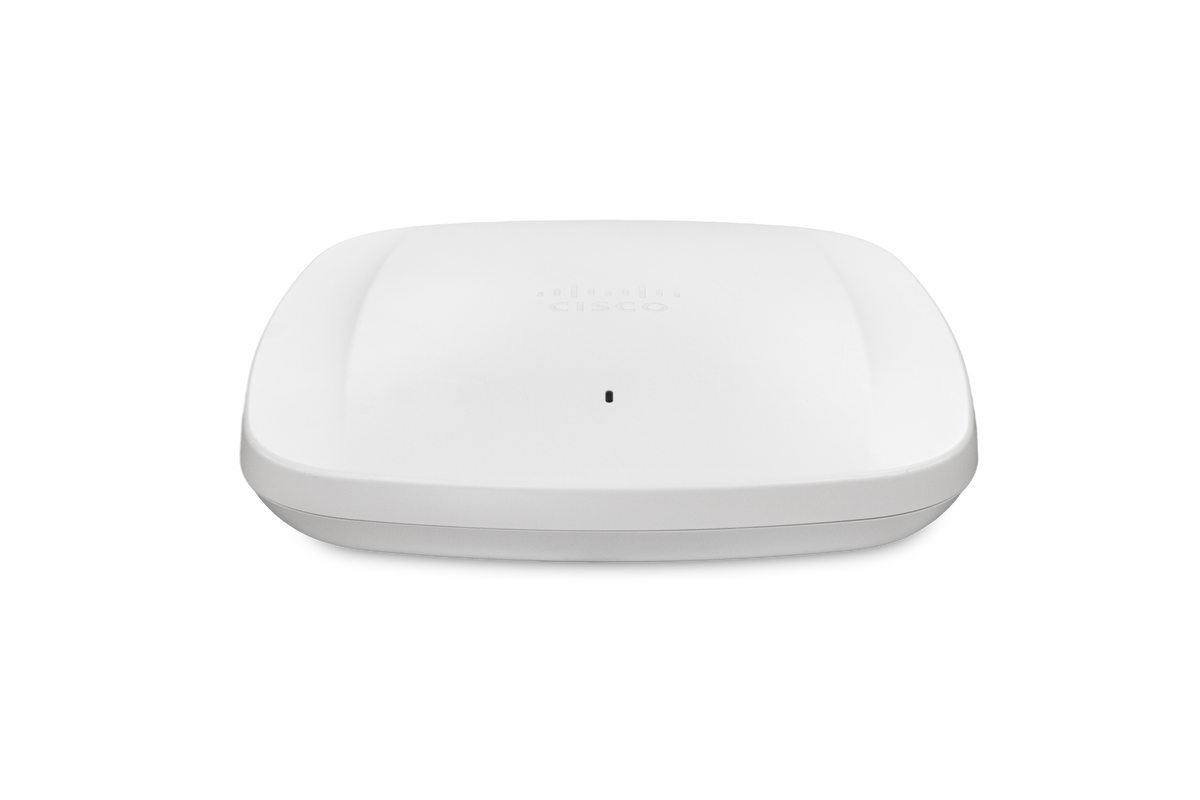

Cisco Meraki CW9164I Wi-Fi 6E Cloud-Managed Indoor Access Point

MPN: CW9164I-MR

$1,332.99reseller pricing · ex. tax

Free US shipping on orders $999+ · flat $9.90–$24.90 ground below

Meraki dashboard license — required to operate

$1,332.99 hardware · no license selected Total$1,332.99

Description

The Cisco Meraki CW9164I (Catalyst Wireless, Meraki-managed) is a high-performance Wi-Fi 6E indoor access point for dense offices, classrooms, and collaboration spaces — 4x4:4 radios on both 5 GHz and 6 GHz, managed entirely from the Meraki dashboard.

Wi-Fi 6E tri-band — 2.4 GHz 2x2:2 + 5 GHz 4x4:4 + 6 GHz 4x4:4; up to 7.49 Gbps aggregate frame rate
1 × 100M/1G/2.5G multigigabit Ethernet (RJ45)
Dedicated tri-band scanning radio — 24/7 Air Marshal WIDS/WIPS and RF analytics
Bluetooth Low Energy radio; USB 2.0 port (4.5 W) for IoT expansion
PoE+ (802.3at) / UPoE (802.3bt) powered — up to 30.5 W with USB, 25 W on PoE+ without
Internal omni antennas (3 dBi @ 2.4 GHz, 5 dBi @ 5 GHz, 4 dBi @ 6 GHz); WPA3 and 802.1X
Desktop, ceiling, and wall mountable; Kensington lock slot; lifetime hardware warranty with advanced replacement

A Meraki Enterprise or Advanced license is required to activate cloud management — choose your term below and we'll co-terminate it to your organization. Authorized Cisco Meraki reseller; request a quote for volume.

Key specifications

Physical

Weight 3.54 lb (1.60 kg)

Mounting Desktop, ceiling, and wall — standard Cisco hardware; Kensington lock slot

Dimensions 9.5 × 9.5 × 2.2 in (241.3 × 241.3 × 56.9 mm)

Operating temperature 32–122°F (0–50°C)

Wireless

Radios 2.4 GHz 2x2:2 + 5 GHz 4x4:4 + 6 GHz 4x4:4 — five radios total

Antennas Internal omni (3 dBi @ 2.4 GHz, 5 dBi @ 5 GHz, 4 dBi @ 6 GHz)

Bluetooth BLE beacon and scanning

Channel widths 20/40/80/160 MHz

Scanning radio Dedicated tri-band WIDS/WIPS (Air Marshal)

Wi-Fi standard Wi-Fi 6E (802.11ax tri-band)

Aggregate frame rate 7.49 Gbps tri-radio

Interfaces & Power

USB USB 2.0 Type A, 4.5 W budget

Power PoE+ 802.3at / UPoE 802.3bt (42.5–57 V) or 54 V DC adapter

Ethernet 1 × 100M/1G/2.5G BASE-T multigigabit (RJ45)

Power consumption Up to 30.5 W (UPoE, USB on); 25 W (PoE+, USB off)

Licensing & Warranty

License required Meraki Enterprise or Advanced, 1/3/5/7/10-year (sold separately — select below)

Hardware warranty Limited lifetime with advanced replacement

Management & Security

Security WPA3, 802.1X, AES; 24/7 Air Marshal WIDS/WIPS

Analytics RF analytics, application-aware traffic shaping

Cloud management Cisco Meraki dashboard, self-configuring

Shipping

Shipping weight 5.1 lb

Shipping dimensions (L × W × H) 11 × 10.8 × 3.7 in

Full datasheet available on request. Specifications per Cisco; Zconnect is an authorized reseller and independent of Cisco Systems.

Meraki hardware needs a dashboard license

Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
