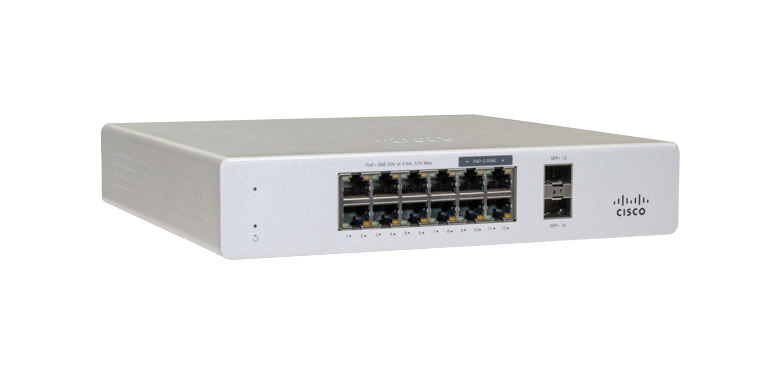

Cisco Meraki MS130-12X Cloud-Managed 12-Port Multigigabit PoE Switch

MPN: MS130-12X-HW
$1,677.99reseller pricing · ex. tax
Meraki dashboard license — required to operate
$1,677.99 hardware · no license selected Total$1,677.99

Description

The Cisco Meraki MS130-12X is a cloud-managed Layer 2 access switch for branch and campus networks. 8 × 1 GbE + 4 × 2.5 GbE mGig access ports plus 2 × 10 GbE SFP+ uplinks — managed entirely from the Meraki dashboard, with no on-box CLI and no controllers to run.

  • 8 × 1 GbE + 4 × 2.5 GbE mGig (RJ45) access ports plus 2 × 10 GbE SFP+ uplinks
  • 76 Gbps switching capacity for line-rate forwarding
  • PoE — 802.3bt, up to 30 W/port, 240 W total budget, to power APs, IP phones, and cameras
  • Cloud-managed — VLANs, 802.1X, DHCP snooping, remote packet capture, and automatic firmware updates from the Meraki dashboard
  • Compact fanless desktop / wall-mount
  • Limited lifetime hardware warranty

A Meraki Enterprise or Advanced license is required to activate cloud management — choose your term below and we'll co-terminate it to your organization. Authorized Cisco Meraki reseller pricing; request a quote for volume.

Key specifications

Power
PoE 802.3bt, up to 30 W/port, 240 W total budget
Power supply External power adapter (54 VDC)
Power consumption 260 W max
Physical
Weight 2.34 lb (1.06 kg)
Mounting Compact fanless desktop / wall-mount
Dimensions 1.75 × 9 × 8.58 in (4.4 × 23 × 23 cm)
Environment
Humidity 5%–95%
MTBF (25°C) 682,400 hours
Operating temperature 32–113°F (0–45°C)
Performance
Switching type Layer 2 access
Switching capacity 76 Gbps
Ports & Interfaces
Management 1 × dedicated management interface
Access ports 8 × 1 GbE + 4 × 2.5 GbE mGig (RJ45)
Uplink ports 2 × 10 GbE SFP+
Licensing & Warranty
License required Enterprise or Advanced, 1/3/5/7/10-year (sold separately — select below)
Hardware warranty Limited lifetime
Management & Security
VLAN 802.1Q tagging
Tools Remote packet capture, automatic firmware updates
Security 802.1X authentication, DHCP snooping
Cloud management Cisco Meraki dashboard
Shipping
Shipping weight 6.3 lb
Shipping dimensions (L × W × H) 15.5 × 11.8 × 3.5 in

Full datasheet available on request. Specifications per Cisco; Zconnect is independent of Cisco Systems.

Meraki hardware needs a dashboard license

Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
