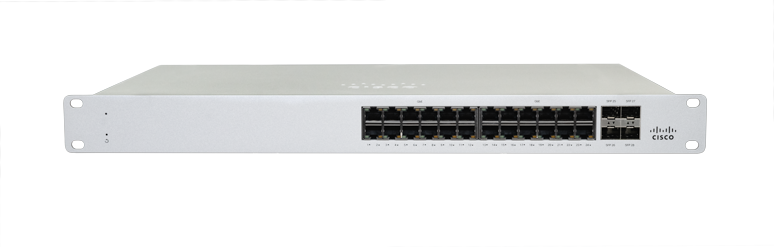

Cisco Meraki MS130-24 Cloud-Managed 24-Port Gigabit Switch

MPN: MS130-24-HW

$1,134.99reseller pricing · ex. tax

Meraki dashboard license — required to operate

$1,134.99 hardware · no license selected Total$1,134.99

Description

The Cisco Meraki MS130-24 is a cloud-managed Layer 2 access switch for branch and campus networks. Twenty-four Gigabit Ethernet ports plus four 1G SFP uplinks are managed entirely from the Meraki dashboard — no on-box CLI, no controllers to run.

24 × 1 GbE RJ45 access ports plus 4 × 1G SFP uplinks
56 Gbps switching capacity for line-rate Layer 2 forwarding
Cloud-managed — VLANs, 802.1X, DHCP snooping, remote packet capture, and automatic firmware updates from the Meraki dashboard
1U rack-mount with a fixed internal power supply (~15 W typical)
Limited lifetime hardware warranty

A Meraki Enterprise or Advanced license is required to activate cloud management — choose your term below and we'll co-terminate it to your organization. Authorized Cisco Meraki reseller pricing; request a quote for volume.

Key specifications

Power

PoE None (see MS130-24P / 24X for PoE)

Power supply Fixed internal

Power consumption 15 W typical / 15 W max

Physical

Weight 7.19 lb (3.26 kg)

Mounting Integrated 1U rack mount

Dimensions 1.73 × 17.32 × 10 in (4.4 × 44 × 25 cm)

Environment

Humidity 5%–95%

MTBF (25°C) 789,842 hours

Operating temperature 32–113°F (0–45°C)

Performance

Switching type Layer 2 access

Switching capacity 56 Gbps

Ports & Interfaces

Management 1 × dedicated management interface

Access ports 24 × 1 GbE (RJ45)

Uplink ports 4 × 1 GbE SFP

Licensing & Warranty

License required Enterprise or Advanced, 1/3/5/7/10-year (sold separately — select below)

Hardware warranty Limited lifetime

Management & Security

VLAN 802.1Q tagging

Tools Remote packet capture, automatic firmware updates

Security 802.1X authentication, DHCP snooping

Cloud management Cisco Meraki dashboard

Shipping

Shipping weight 9.19 lb

Shipping dimensions (L × W × H) 21.65 × 12.6 × 4.13 in

Full datasheet available on request. Specifications per Cisco; Zconnect is independent of Cisco Systems.

Meraki hardware needs a dashboard license

Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
