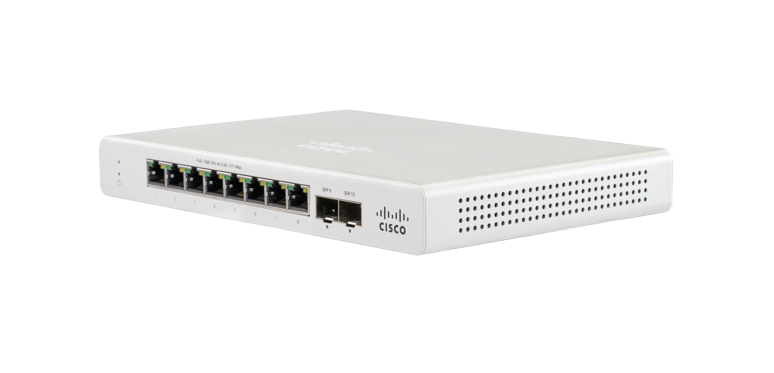

Cisco Meraki MS130-8P Cloud-Managed 8-Port PoE Gigabit Switch

Cisco Meraki MS130-8P Cloud-Managed 8-Port PoE Gigabit Switch

$1,037.99reseller pricing · ex. tax
Meraki dashboard license— required to operate
$1,037.99 hardware · no license selected Total$1,037.99

The Cisco Meraki MS130-8P is a cloud-managed Layer 2 access switch for branch and campus networks. 8 × 1 GbE access ports plus 2 × 1 GbE SFP uplinks — managed entirely from the Meraki dashboard, with no on-box CLI and no controllers to run.

  • 8 × 1 GbE (RJ45) access ports plus 2 × 1 GbE SFP uplinks
  • 20 Gbps switching capacity for line-rate forwarding
  • PoE — 802.3bt, up to 30 W/port, 120 W total budget, to power APs, IP phones, and cameras
  • Cloud-managed — VLANs, 802.1X, DHCP snooping, remote packet capture, and automatic firmware updates from the Meraki dashboard
  • Compact fanless desktop / wall-mount
  • Limited lifetime hardware warranty

A Meraki Enterprise or Advanced license is required to activate cloud management — choose your term below and we'll co-terminate it to your organization. Authorized Cisco Meraki reseller pricing; request a quote for volume.

  • Limited lifetime warranty — Meraki's hardware warranty covers the device for its operational life.
  • Cloud-managed — configured, monitored and updated from the Meraki dashboard.
  • 24×7 support — Cisco TAC support included while your dashboard license is active.

Key specifications

Ports & Interfaces
Access ports 8 × 1 GbE (RJ45)
Uplink ports 2 × 1 GbE SFP
Management 1 × dedicated management interface
Performance
Switching type Layer 2 access
Switching capacity 20 Gbps
Power
PoE 802.3bt, up to 30 W/port, 120 W total budget
Power supply External power adapter (54 VDC)
Power consumption 128 W max
Physical
Dimensions 1.1 × 8.74 × 6 in (2.8 × 22.2 × 15 cm)
Weight 1.94 lb (0.88 kg)
Mounting Compact fanless desktop / wall-mount
Environment
Operating temperature 32–113°F (0–45°C)
Humidity 5%–95%
MTBF (25°C) 563,569 hours
Management & Security
Cloud management Cisco Meraki dashboard
VLAN 802.1Q tagging
Security 802.1X authentication, DHCP snooping
Tools Remote packet capture, automatic firmware updates
Licensing & Warranty
License required Enterprise or Advanced, 1/3/5/7/10-year (sold separately — select below)
Hardware warranty Limited lifetime

Full datasheet available on request. Specifications per Cisco; Zconnect is an authorized reseller and independent of Cisco Systems.

Required to operate

Meraki hardware needs a dashboard license

Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.

View Licensing Options

Not sure this is the right model?

Send us your site and coverage needs. We'll confirm the model, size the count, and quote it with the right license — free, no obligation.

Book Free Advisory
Authorized Cisco Meraki Partner · Reseller pricing · SF Bay Area
