Cisco Meraki

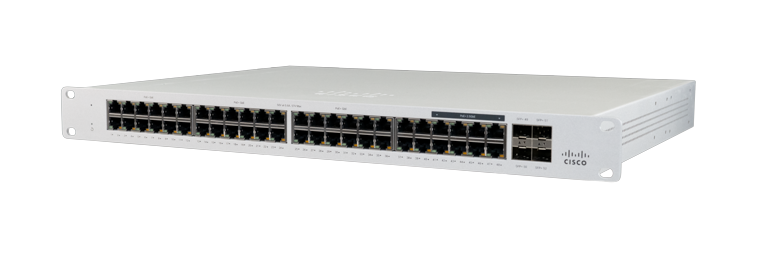

Cisco Meraki MS130-48X Cloud-Managed 48-Port Multigigabit PoE Switch

MPN: MS130-48X-HW
$4,966.99reseller pricing · ex. tax
Meraki dashboard license — required to operate
$4,966.99 hardware · no license selected Total$4,966.99

Description

The Cisco Meraki MS130-48X is a cloud-managed Layer 2 access switch for branch and campus networks. 40 × 1 GbE + 8 × 2.5 GbE mGig access ports plus 4 × 10 GbE SFP+ uplinks — managed entirely from the Meraki dashboard, with no on-box CLI and no controllers to run.

  • 40 × 1 GbE + 8 × 2.5 GbE mGig (RJ45) access ports plus 4 × 10 GbE SFP+ uplinks
  • 200 Gbps switching capacity for line-rate forwarding
  • PoE — 802.3bt, up to 30 W/port, 740 W total budget, to power APs, IP phones, and cameras
  • Cloud-managed — VLANs, 802.1X, DHCP snooping, remote packet capture, and automatic firmware updates from the Meraki dashboard
  • 1U rack-mount
  • Limited lifetime hardware warranty

A Meraki Enterprise or Advanced license is required to activate cloud management — choose your term below and we'll co-terminate it to your organization. Authorized Cisco Meraki reseller pricing; request a quote for volume.

Key specifications

Power
PoE 802.3bt, up to 30 W/port, 740 W total budget
Power supply Fixed internal
Power consumption 808 W max
Physical
Weight 12.59 lb (5.71 kg)
Mounting 1U rack-mount
Dimensions 1.73 × 17.32 × 13.4 in (4.4 × 44 × 34 cm)
Environment
Humidity 5%–95%
MTBF (25°C) 396,536 hours
Operating temperature 32–113°F (0–45°C)
Performance
Switching type Layer 2 access
Switching capacity 200 Gbps
Ports & Interfaces
Management 1 × dedicated management interface
Access ports 40 × 1 GbE + 8 × 2.5 GbE mGig (RJ45)
Uplink ports 4 × 10 GbE SFP+
Licensing & Warranty
License required Enterprise or Advanced, 1/3/5/7/10-year (sold separately — select below)
Hardware warranty Limited lifetime
Management & Security
VLAN 802.1Q tagging
Tools Remote packet capture, automatic firmware updates
Security 802.1X authentication, DHCP snooping
Cloud management Cisco Meraki dashboard
Shipping
Shipping weight 18.15 lb
Shipping dimensions (L × W × H) 22.9 × 18 × 9.3 in

Full datasheet available on request. Specifications per Cisco; Zconnect is independent of Cisco Systems.

Meraki hardware needs a dashboard license

Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
