Cisco Meraki

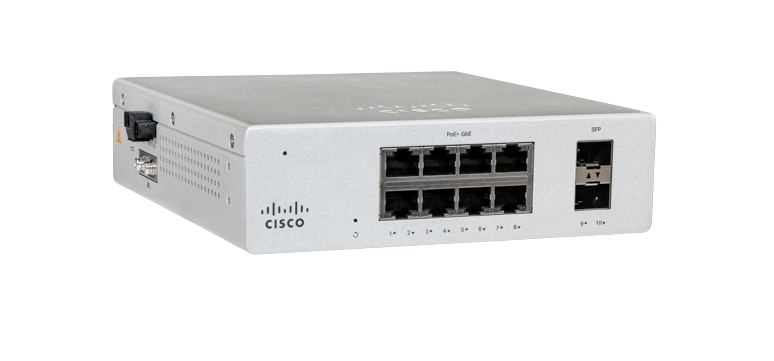

Cisco Meraki MS130R-8P Cloud-Managed Ruggedized 8-Port PoE Switch

MPN: MS130R-8P-HW
$3,040.99reseller pricing · ex. tax
Meraki dashboard license — required to operate
$3,040.99 hardware · no license selected Total$3,040.99

Description

The Cisco Meraki MS130R-8P extends cloud-managed switching to places a normal switch can't survive — warehouses, factory floors, outdoor enclosures, and utility cabinets. IP30-hardened, fanless, and rated from −40°F to 158°F, it powers outdoor APs, cameras, and industrial devices while being managed entirely from the Meraki dashboard.

  • 8 × 1 GbE RJ45 PoE+ ports — 240 W total budget, up to 30 W per port (802.3bt)
  • 2 × 1 GbE SFP uplinks; 20 Gbps switching capacity
  • Ruggedized IP30 enclosure, fanless; operates from −40°F to 158°F (−40°C to 70°C)
  • DIN rail, wall, or desktop mounting — industrial-friendly form factor
  • Cloud-managed: VLANs, 802.1X, remote packet capture, automatic firmware updates
  • Power supply sold separately — MA-PWR-300W-INDADP external adapter, or PWR-IE240W/IE480W DIN-rail supplies; ask us and we'll spec the right one
  • Limited lifetime hardware warranty with advanced replacement

A Meraki Enterprise or Advanced license is required to activate cloud management — choose your term below and we'll co-terminate it to your organization. Authorized Cisco Meraki reseller; request a quote for volume.

Key specifications

Power
Power input 50–54 V DC, 5.6 A
Power supply Sold separately — MA-PWR-300W-INDADP adapter, or PWR-IE240W-PCAC-L= / PWR-IE480W-PCAC-L= DIN-rail supplies
Power consumption 12–257 W
Physical
Weight 2.12 lb (0.96 kg)
Mounting DIN rail, wall, or desktop
Dimensions 1.75 × 6.18 × 6.69 in
Performance
Switching type Layer 2 access
Switching capacity 20 Gbps
Ruggedization
Cooling Fanless
MTBF (25°C) 682,913 h (DIN rail) / 761,689 h (adapter)
Enclosure rating IP30, hardened
Storage temperature −40°F to 185°F (−40°C to 85°C)
Operating temperature −40°F to 158°F (−40°C to 70°C)
Ports & Interfaces
PoE budget 240 W total
Access ports 8 × 1 GbE RJ45 with PoE+ (802.3bt, 30 W/port)
Uplink ports 2 × 1 GbE SFP
Licensing & Warranty
License required MS130 Compact Enterprise or Advanced, 1/3/5/7/10-year (sold separately — select below)
Hardware warranty Limited lifetime with advanced replacement
Management & Security
VLAN 802.1Q tagging
Tools Remote packet capture, automatic firmware updates
Security 802.1X authentication, DHCP snooping
Cloud management Cisco Meraki dashboard
Shipping
Shipping weight 3.66 lb
Shipping dimensions (L × W × H) 10.57 × 7.62 × 3.37 in

Full datasheet available on request. Specifications per Cisco; Zconnect is independent of Cisco Systems.

Meraki hardware needs a dashboard license

Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
