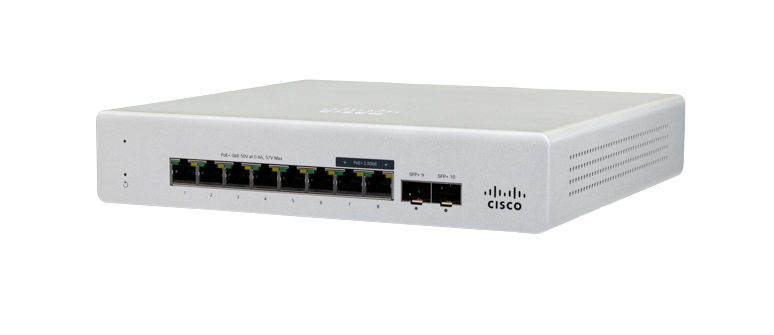

Cisco Meraki MS130-8X Cloud-Managed 8-Port Multigigabit PoE Switch

MPN: MS130-8X-HW

$1,305.99reseller pricing · ex. tax

Free US shipping on orders $999+ · flat $9.90–$24.90 ground below

Meraki dashboard license — required to operate

$1,305.99 hardware · no license selected Total$1,305.99

Description

The Cisco Meraki MS130-8X is a cloud-managed Layer 2 access switch for branch and campus networks. 6 × 1 GbE + 2 × 2.5 GbE mGig access ports plus 2 × 10 GbE SFP+ uplinks — managed entirely from the Meraki dashboard, with no on-box CLI and no controllers to run.

6 × 1 GbE + 2 × 2.5 GbE mGig (RJ45) access ports plus 2 × 10 GbE SFP+ uplinks
62 Gbps switching capacity for line-rate forwarding
PoE — 802.3bt, up to 30 W/port, 120 W total budget, to power APs, IP phones, and cameras
Cloud-managed — VLANs, 802.1X, DHCP snooping, remote packet capture, and automatic firmware updates from the Meraki dashboard
Compact fanless desktop / wall-mount
Limited lifetime hardware warranty

A Meraki Enterprise or Advanced license is required to activate cloud management — choose your term below and we'll co-terminate it to your organization. Authorized Cisco Meraki reseller pricing; request a quote for volume.

Key specifications

Power

PoE 802.3bt, up to 30 W/port, 120 W total budget

Power supply External power adapter (54 VDC)

Power consumption 136 W max

Physical

Weight 2.12 lb (0.96 kg)

Mounting Compact fanless desktop / wall-mount

Dimensions 1.75 × 9 × 8.58 in (4.4 × 23 × 23 cm)

Environment

Humidity 5%–95%

MTBF (25°C) 1,042,108 hours

Operating temperature 32–113°F (0–45°C)

Performance

Switching type Layer 2 access

Switching capacity 62 Gbps

Ports & Interfaces

Management 1 × dedicated management interface

Access ports 6 × 1 GbE + 2 × 2.5 GbE mGig (RJ45)

Uplink ports 2 × 10 GbE SFP+

Licensing & Warranty

License required Enterprise or Advanced, 1/3/5/7/10-year (sold separately — select below)

Hardware warranty Limited lifetime

Management & Security

VLAN 802.1Q tagging

Tools Remote packet capture, automatic firmware updates

Security 802.1X authentication, DHCP snooping

Cloud management Cisco Meraki dashboard

Shipping

Shipping weight 6.37 lb

Shipping dimensions (L × W × H) 15.12 × 10.87 × 3.39 in

Full datasheet available on request. Specifications per Cisco; Zconnect is an authorized reseller and independent of Cisco Systems.

Meraki hardware needs a dashboard license

Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
