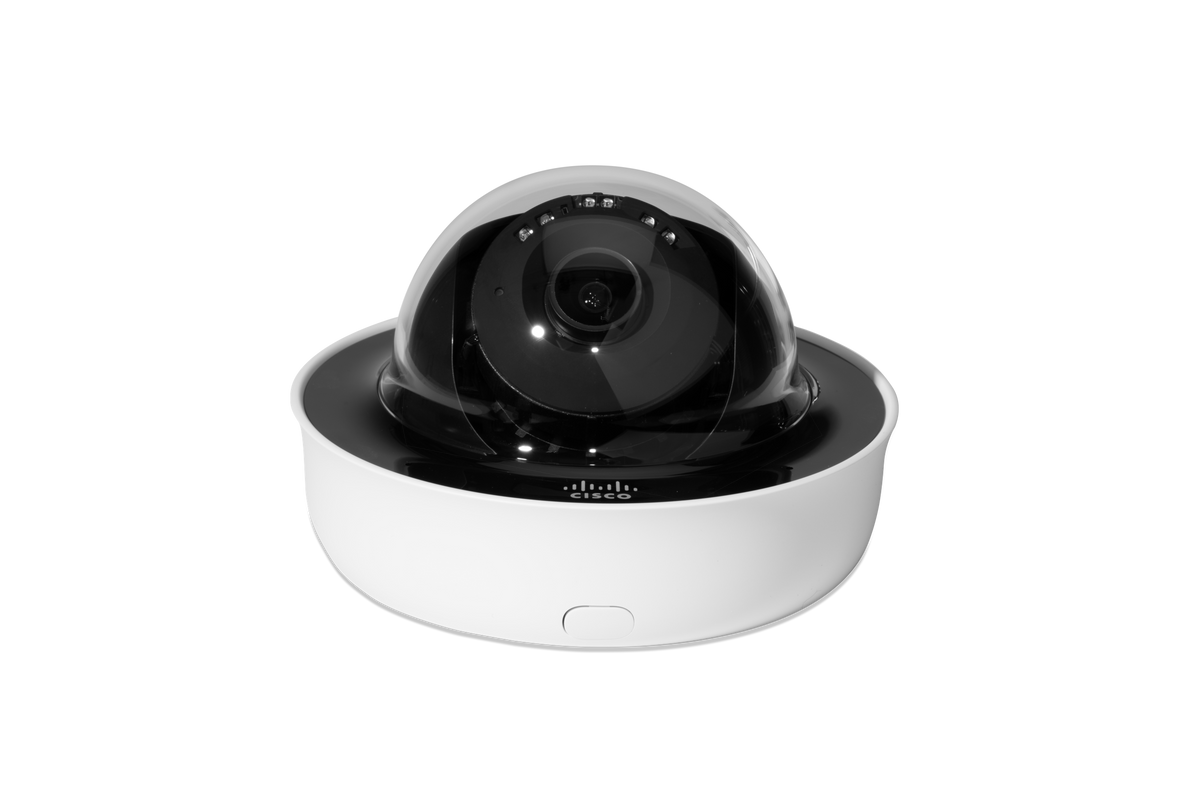

Cisco Meraki MV23M Indoor Varifocal Dome Smart Camera (8MP / 512GB)
The Cisco Meraki MV23M is a third-generation cloud-managed indoor varifocal dome smart camera that brings together physical security and advanced AI-driven analytics in a compact, ceiling-mount form factor. Powered by an 8.41 MP 1/2.8" progressive CMOS sensor and a motorised 3.0–9.0 mm varifocal lens, it delivers sharp 4K (3840×2160) video with a flexible horizontal field of view of 36°–112°, making it equally at home monitoring narrow doorways or wide open areas such as lobbies, retail floors, and office spaces. The MV23M stores footage directly on its built-in 512 GB high-endurance SSD and synchronises metadata to the Meraki cloud, eliminating the cost and complexity of traditional NVRs or VMS servers.
- Up to 4K (3840×2160) H.264 Smart Codec recording at up to 15 fps, plus 4MP (up to 24 fps) and 1080p (up to 24 fps) modes with High Dynamic Range (HDR)
- Built-in IR illuminators effective up to 30 m (98 ft) for clear night-time and low-light footage
- Auto day/night with 1/30 to 1/32,000 s electronic shutter range
- Integrated 802.11a/b/g/n/ac Wi-Fi (2.4 GHz & 5 GHz, 1×1) for flexible, wire-free installation options
- Four built-in microphones enable audio recording with configurable privacy controls
- Single-cable 802.3af PoE deployment (15.4 W max) with optional 12 VDC / 24 VAC terminal power input
Edge analytics are handled by an industry-leading onboard processor, enabling real-time machine-learning-based object detection, people counting, motion search, motion heatmaps, and motion recap — all accessible directly from the Meraki Dashboard without additional software licences or servers. Attribute Search powered by AI allows operators to quickly locate people or vehicles across hours of footage. Role-based access controls, full AES 256-bit disk encryption, automatically provisioned TLS certificates, and secure boot with a hardware security chip deliver end-to-end security for video data at rest and in transit. The MV23M is NDAA compliant and backed by a five-year hardware warranty with advanced replacement.
The MV23M integrates natively with the Meraki Dashboard alongside Meraki switches, wireless access points, and sensors, providing unified visibility and management from a single pane of glass across any deployment from one camera to 10,000+. Please note: a Cisco Meraki MV Enterprise licence (sold separately, available in 1, 3, 5, 7, or 10-year terms) is required to activate and manage the camera.
- Limited lifetime warranty — Meraki's hardware warranty covers the device for its operational life.
- Cloud-managed — configured, monitored and updated from the Meraki dashboard.
- 24×7 support — Cisco TAC support included while your dashboard license is active.
Key specifications
Full datasheet available on request. Specifications per Cisco; Zconnect is an authorized reseller and independent of Cisco Systems.
Meraki hardware needs a dashboard license
Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
Not sure this is the right model?
Send us your site and coverage needs. We'll confirm the model, size the count, and quote it with the right license — free, no obligation.
