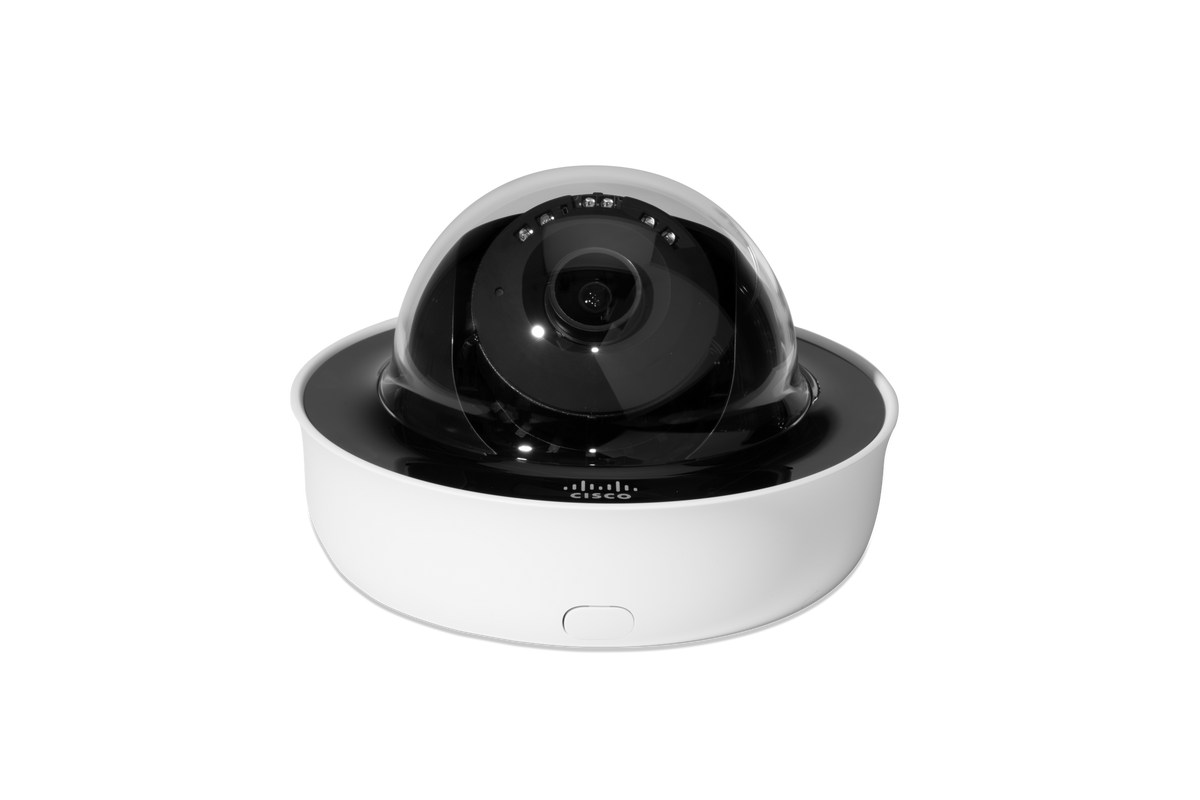

Cisco Meraki MV23X Indoor Varifocal Dome Camera – 8MP 4K with 1TB Storage
The Cisco Meraki MV23X is a third-generation smart indoor dome camera that combines physical security and advanced AI-powered analytics in a compact varifocal form factor. Featuring a 1/2.8" 8.41MP progressive CMOS sensor and a motorised 3.0–9.0 mm varifocal lens, the MV23X delivers stunning 4K (3840×2160) video at up to 15 fps — giving security teams the level of detail they need to stay on top of what matters. Built-in IR illuminators provide clear night-vision coverage up to 30 m (98 ft), while High Dynamic Range (HDR) ensures excellent image quality across challenging lighting conditions. The camera's compact dome design is suitable for ceiling, wall, or corner-mount installations, making it ideal for monitoring entrances, exits, lobbies, and large open spaces.
The MV23X is powered by Meraki's cloud-augmented edge architecture: 1 TB of on-board high-endurance SSD storage keeps video locally on the camera, while metadata is synchronised to the Meraki cloud — eliminating the need for NVRs, VMS servers, or complex on-premises infrastructure. Smart Retention automatically optimises storage usage through intelligent scheduling, and full disk encryption (AES 256-bit) ensures footage remains private. Machine-learning-based computer vision runs entirely on the camera's onboard processor, enabling real-time object detection, people counting, motion heatmaps, motion recap, and AI-powered Attribute Search — all without additional servers or software licences.
- 1/2.8" 8.41MP (3854×2176) progressive CMOS image sensor
- 4K (3840×2160) H.264 Smart Codec video, up to 15 fps; 4MP up to 24 fps; 1080p up to 24 fps
- 1 TB high-endurance on-board solid-state storage
- 3.0–9.0 mm varifocal lens, f/1.6–2.9 aperture; horizontal FoV 36°–112°
- Built-in IR illuminators effective up to 30 m (98 ft); auto day/night mode
- High Dynamic Range (HDR) image processing
- 802.11ac (2.4 GHz 802.11b/g/n & 5 GHz 802.11a/n/ac) integrated wireless
- 1× 10/100/1000BASE-T Ethernet (RJ45); 802.3af PoE (15.4 W max)
- Full disk encryption (AES 256-bit); secure boot; signed firmware; hardware security chip
- NDAA compliant; five-year hardware warranty with advanced replacement
Managed entirely through the Meraki Dashboard, the MV23X requires no dedicated software installation. Administrators benefit from network-wide camera visibility, role-based access control, drag-and-drop video walls, clip sharing, and remote live or historical video streaming — all from any browser or the Meraki mobile app. The camera supports 802.11ac wireless connectivity for flexible deployment, and optional 12 VDC / 24 VAC terminal power input where PoE is unavailable. A Meraki MV Enterprise licence is required to activate and operate the camera and is sold separately (LIC-MV-XYR, available in 1, 3, 5, 7, or 10-year terms).
- Limited lifetime warranty — Meraki's hardware warranty covers the device for its operational life.
- Cloud-managed — configured, monitored and updated from the Meraki dashboard.
- 24×7 support — Cisco TAC support included while your dashboard license is active.
Key specifications
Full datasheet available on request. Specifications per Cisco; Zconnect is an authorized reseller and independent of Cisco Systems.
Meraki hardware needs a dashboard license
Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
Not sure this is the right model?
Send us your site and coverage needs. We'll confirm the model, size the count, and quote it with the right license — free, no obligation.
