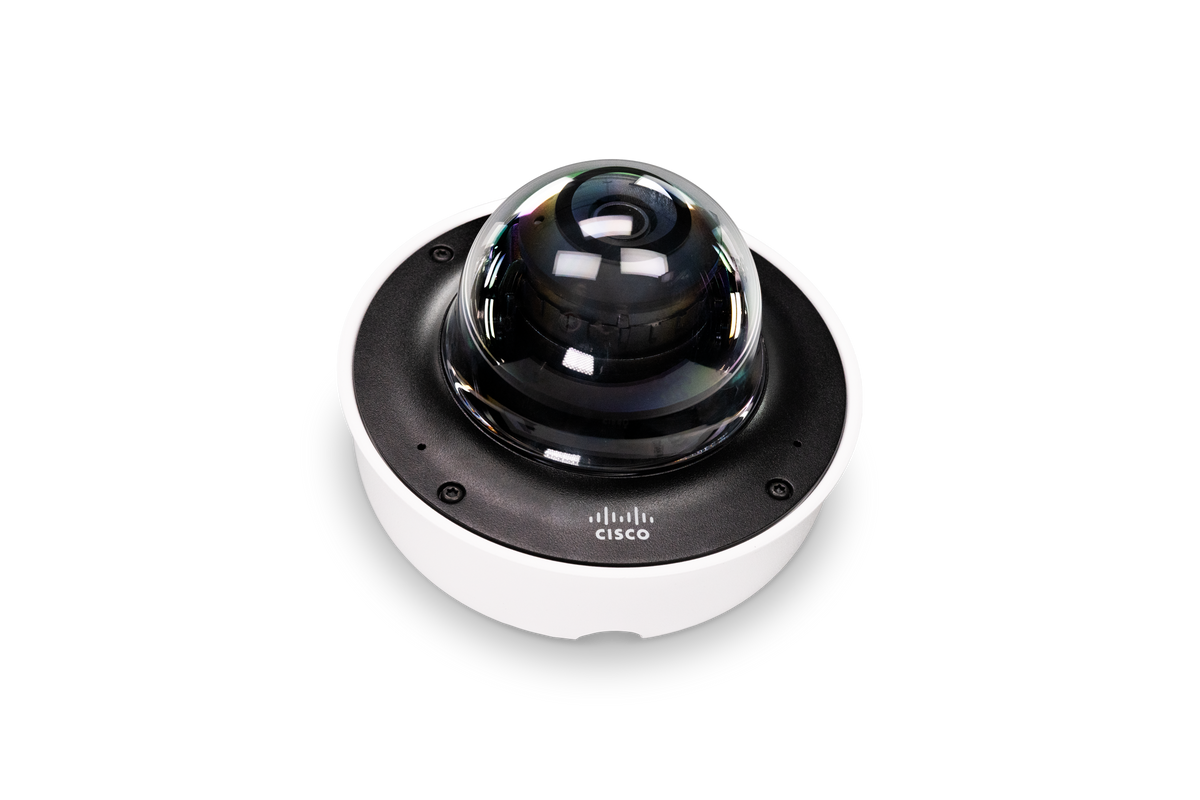

Cisco Meraki MV63X Outdoor Fixed-Lens Mini-Dome Smart Camera – 1TB Storage (MV63X-HW)
The Cisco Meraki MV63X is a third-generation cloud-managed smart camera that combines physical security and advanced analytics in a compact, fixed-lens mini-dome form factor. Delivering up to 4K (3840×2160) resolution with H.264 Smart Codec encoding, the MV63X captures exceptional detail for high-definition outdoor surveillance. With 1 TB of built-in high-endurance solid-state storage, cloud-augmented edge architecture eliminates the need for costly NVR infrastructure — video is stored locally on the camera while metadata is managed in the cloud, dramatically reducing both CapEx and ongoing OpEx.
Engineered for demanding outdoor environments, the MV63X carries IK10+ vandal resistance and IP67 weatherproofing ratings, along with built-in IR illuminators effective up to 20 m (66 ft) for reliable night-time visibility. Its 102° horizontal field of view and 1/2.8" 8.41MP CMOS image sensor with f/2.0 aperture make it ideal for monitoring entrances, exits, and general perimeters from walls, ceilings, or corner-mount locations. Built-in heating elements ensure continuous operation down to –40°C. The camera also holds an EN 50155 Railway Compliance certification, confirming its resilience against shock and vibration in transportation environments.
The MV63X leverages Meraki's machine-learning-based computer vision to perform real-time object detection, classification, and tracking of people and vehicles. Three built-in microphones support audio recording, while an external microphone switch offers additional flexibility. Connectivity is provided via a 10/100/1000BASE-T Ethernet (RJ45) port powered by 802.3at PoE+, supplemented by integrated dual-band 802.11ac Wi-Fi with omnidirectional antennas. Security is multi-layered, featuring full disk AES-256 encryption, automatically provisioned TLS certificates, secure boot with signed firmware, and a dedicated hardware security chip — making the MV63X NDAA compliant.
- 4K video (3840×2160) at up to 15 fps with H.264 Smart Codec; also supports 4MP at 24 fps and 1080p at 24 fps
- 1 TB high-endurance onboard SSD — no NVR required
- IK10+ vandal resistance, IP67 weather rating, and built-in IR up to 20 m (66 ft)
- Integrated dual-band 802.11ac Wi-Fi for flexible, cable-free placement
- Machine-learning analytics: Line Crossing, Area Occupancy, MV Sense, and Custom Computer Vision
- Managed via the Meraki Dashboard — zero-touch provisioning, automatic firmware updates, and 24/7 cloud monitoring
A Cisco Meraki MV Enterprise license (LIC-MV-XYR, sold separately) is required to activate and operate this camera. Optional add-on licenses for MV Sense analytics and MV Cloud Archive are also available.
- Limited lifetime warranty — Meraki's hardware warranty covers the device for its operational life.
- Cloud-managed — configured, monitored and updated from the Meraki dashboard.
- 24×7 support — Cisco TAC support included while your dashboard license is active.
Key specifications
Full datasheet available on request. Specifications per Cisco; Zconnect is an authorized reseller and independent of Cisco Systems.
Meraki hardware needs a dashboard license
Meraki hardware won't come online without an active dashboard license. We match the right term to your hardware so nothing stops working at renewal — bundled into your quote above, or licensed separately.
Not sure this is the right model?
Send us your site and coverage needs. We'll confirm the model, size the count, and quote it with the right license — free, no obligation.
